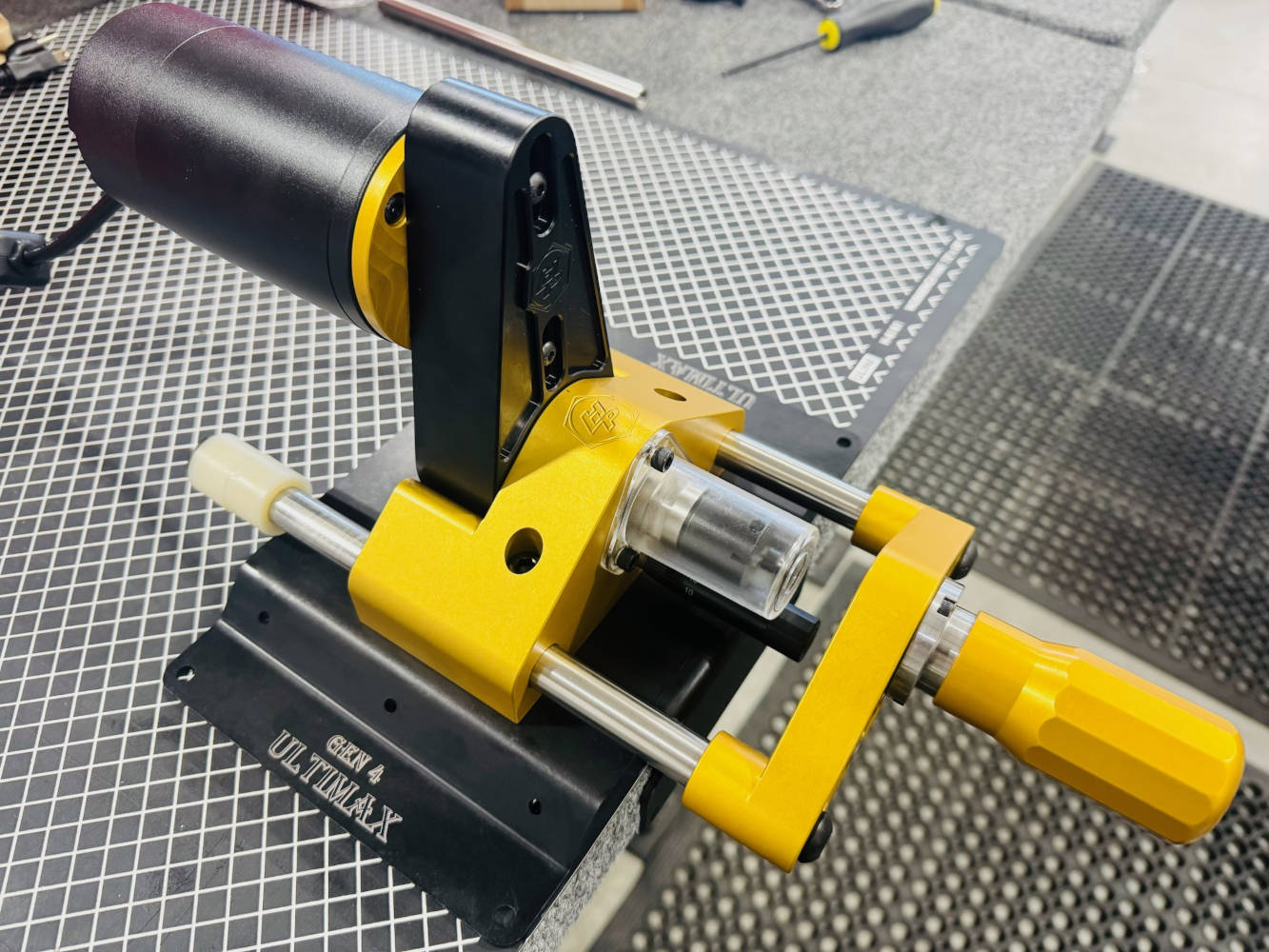

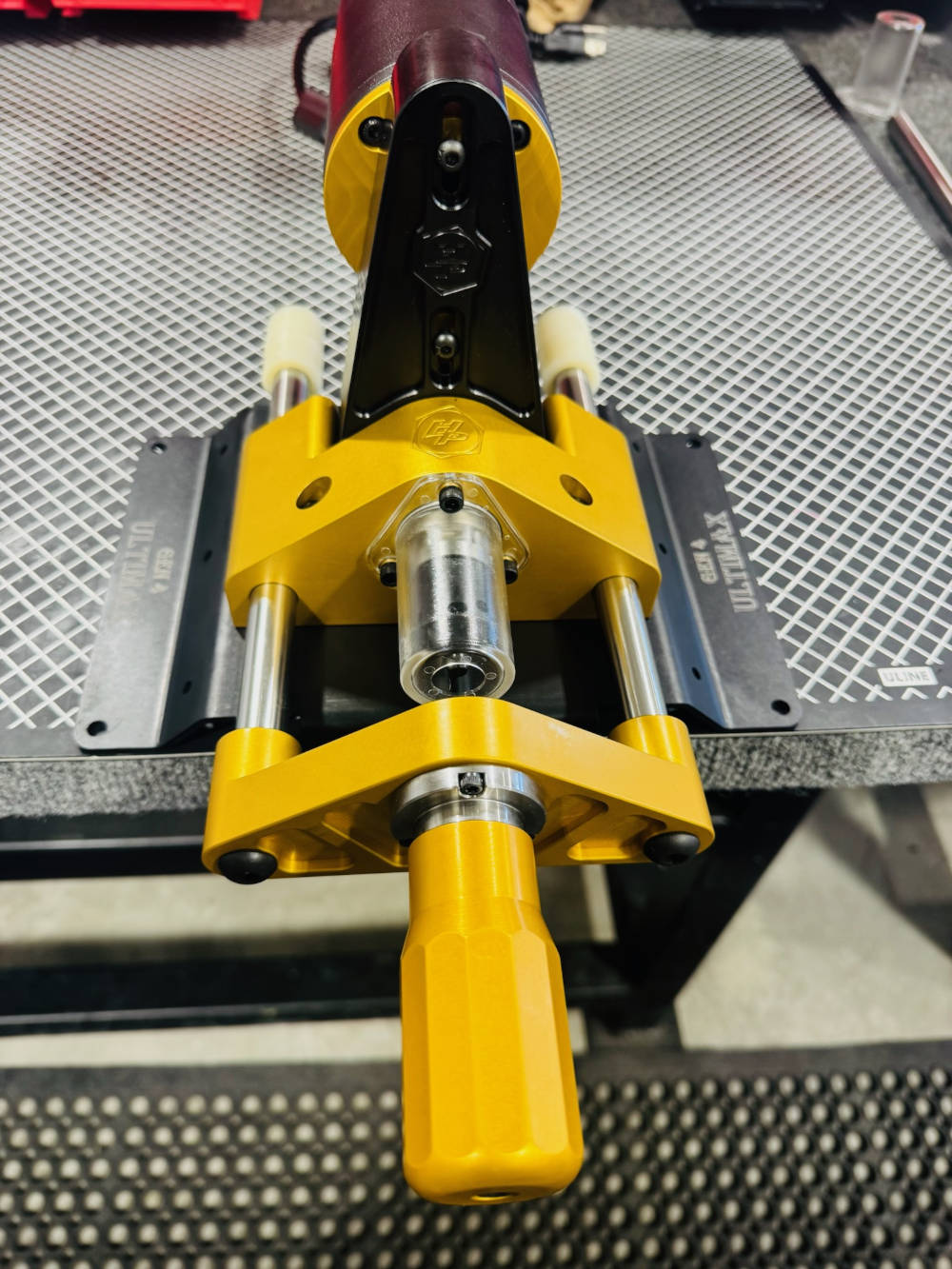

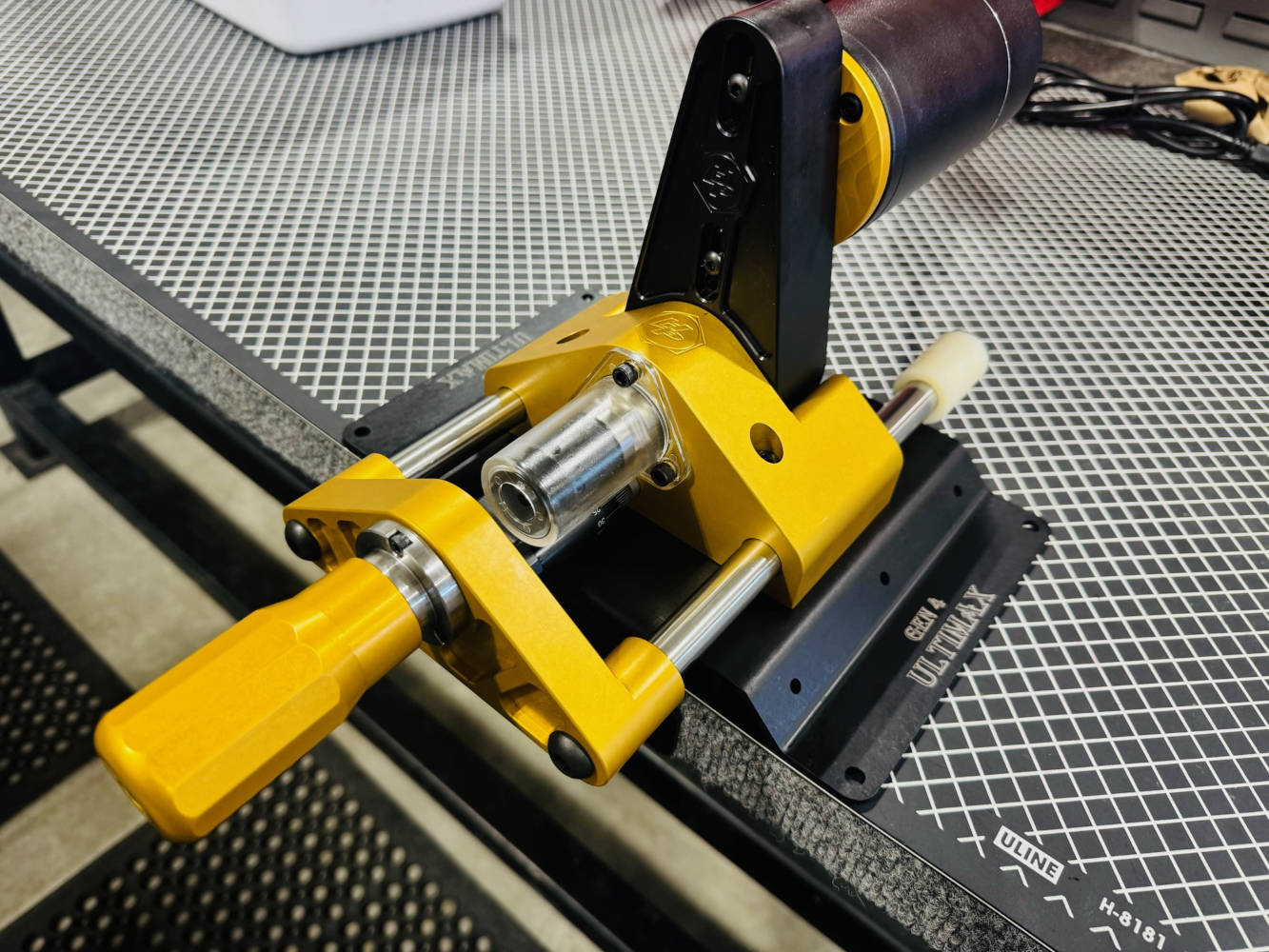

Henderson GEN 4 ULTIMAX POWERED CASE TRIMMER 230v

Please Note: Gen 4 Cutting heads are designed for the GEN 4 ULTIMAX only

What’s included with your trimmer:

• Collet (your choice)
• Extra Drive belt
• Extra Cutter draw screw
• Base Plate for mounting
• 5/32 Allen wrench
• 7/8 wrench for cutting head removal
• Bin and shaving catch assembly

• Cutter heads will need to be adjusted by the end user to your brass and dies

The Gen 4 ULTIMAX case trimmer includes one Henderson designed collet and is available in the following calibers:

(17, 204, 224, 243, 25, 264, 277, 284, 308, 8mm, 338, 35, 375, 408, 416, 458)

• Trims most standard calibers (pistol calibers coming soon)
• Will repeat to within 0.002″ with same brand brass
• Brown & Sharpe-type collet
• Taper-Lock cutter 14deg inside chamfer 30deg outside chamfer
• Single speed 115v DC motor powers the trimmer at 1800rpms (US and Canada).  220-240V single speed DC motor also available

COLLET CALIBER FIT LIST
The dimensions for each collet step shown below correspond to common case rim diameters.

(Please send us an email or give us a call for calibers not listed)

Collet #01 – (.379, .473 & .532 Dia)
222 Rem. Mag, 223 Rem, 225 Win, 22-250, 220 Swift, 243 Win, 6mm Dasher, 6×47 Lapua, 6XC, 244 Rem, 6mm B.R. Rem., 257, 25-06, 264 Win. Mag, 260 Rem, 6.5×47 Lapua, 6.5 Creed, 6mm Creed, 6mm SLR, 6.5×57 Mauser, 6.5mm Win, 6.5 Jap Mauser, 6.5×55 Swede, 6.5×55 SKAN, 270 Win, 270 Savage, 270 Gibbs, 270 Wby, 270 Ackley, 7×57 Mauser, 7mm Wby, 7mm-08, 280 Rem, 284 Win, 7mm Rem. Mag, 7mm B.R. Rem, 30-06, 308 Win, 300 win Mag, 300 Sav, 303 British, 35 Whelen, 350 Legend

Collet #02 –(.350, .418 & .506 Dia)
30-30, 7.5×55 Swiss,

Collet #03 – (.356, .440 & .545 Dia)

6mm PPC, 6mm Krag, 6.5 Grendel, 6 ARC, 22ARC, 6.8SPC, .224 Valkyrie, 300 Rem. Ultra Mag, 300 WSM, 300 SAUM, 6.5 PRC, 300 PRC, 7mm PRC. 26 Nosler, 28 Nosler

Collet #04 – (.605 Dia)
300 Norma Mag, 338 Norma, 338 Lapua, 33XC, 37 XC, 45-70

Collet #05 – (.640 Dia)

Cheytac, Hellfire,

Product info

OVERVIEW:
The GEN 4 ULTIMAX Case Trimmer utilizes The Taper-Lock cutter head to create clean, consistent and completely trimmed cases in one operation. The cutter head has adjustable carbide blades that will last a lifetime and leave burr-free cuts on the mouth of the case. GEN 4 ULTIMAX Case Trimmer is machined from 6061-T6 aluminum and a combination of 303 and 416 stainless steel. It has been engineered and manufactured 100% in America for a lifetime of service to the end user.
DESIGN:
Case preparation is a necessary evil in the reloading process. The trim operation for rifle cases is especially time consuming unless you are using a GEN 4 ULTIMAX case trimmer. The GEN 4 ULTIMAX is designed from the ground up to make trimming cases easy, fast and accurate. The cartridge case it held by a Brown and Sharpe type collet by the rim. These types of collets are used in the machine tool world because of their accuracy and repeatability. There are 5 collets for the various cartridges one would reload for, from .17 to Cheytac and everything in between. The cartridge case is placed into the collet base first and held in place while the handle is tightened to secure the case for the trimming operation. It only takes about ten degrees of rotation for the handle to secure the case.  This design holds the case in the same position regardless of the rim diameter for consistent trim length. The collet assembly is mated to a carriage machined from solid 6061-T6 bar stock and precision fit to ground and polished stainless rods. The spindle is machined from stainless steel and rides in a set of sealed ball bearings which are press fit into the bearing housing which is also machined from solid 6061-T6 bar stock. All the fasteners are black oxide coated and sourced locally.

SETUP:

GEN 4 ULTIMAX Case Trimmer will come with one collet for the desired cartridge and will need to be set up before use. Before any adjustments are made to the GEN 4 ULTIMAX Case Trimmer, make sure the power source has been turned off. The protective cover may be removed for the adjustment procedure but must be used while in operation to prevent injury to the user. The Taper-Lock cutting head is available non-adjusted only. Please refer to our video page and the Ultimate Reloader video for a step-by-step instruction. To set the length, insert a cartridge case into the respective collet and tighten handle. Gently push the handle forward toward the cutter head until the mouth of the case passes over the pilot and touches the blades. With the case mouth touching the cutting blades, back out the micrometer stop until it touches the carriage stop. This is a coarse adjustment and should only take a minute or two. Install the protective cover and power source and attempt to trim your case by pushing it toward the cutter head. If it does not trim turn off the power source screw the micrometer in a small amount and attempt another trim cycle.  Repeat as necessary until the cartridge case is trimmed and then measure and adjust as needed to attain the desired length.  Record the micrometer setting for future use with each caliber.

OPERATION:
GEN 4 ULTIMAX Powered Case Trimmer is designed with a custom DC single speed motor that powers the trimmer at around 1800rpms.  It is preferable to screw or clamp it to your work bench. When in proper position for use, the GEN 4 ULTIMAX Case Trimmer will be positioned on a bench with the cutter head facing toward the operator. When facing it, the cutter head will rotate in a counterclockwise direction.  Insert a clean and sized cartridge case into the collet and rotate the handle clockwise, hand tight to secure the case. Gently push the handle toward the cutter until the cutter head engages the case mouth. At this point you will feel the cutting action. When you no longer see or feel the cutting action, retract the carriage and loosen the handle to remove the case.  It is recommended to measure the cases randomly to make sure all adjustments are secure. Once adjusted, The GEN 4 ULTIMAX Case Trimmer will repeat within .002” with the same brand of brass. Enjoy your new GEN 4 ULTIMAX Case Trimmer if you have any questions, make sure to contact us.

Please see cutter head adjustment instructions on our video home page

PLEAS NOTE, UNIT REQUIRES AN ADAPTOR FOR POWERPOINT.
