SAC “The” Seating Die

$649.00$699.00

+ Shipping
SKU: SAC-TSD-1 Category:

“THE” SEATING DIE

THE BULLET SEATING DIE IS DESIGNED TO BE THE ONLY BULLET SEATING DIE YOU WILL EVER NEED FOR A FAMILY OF CARTRIDGE BODIES. FOR EXAMPLE, WITH OUT PURCHASING ANY ADDITIONAL PARTS, YOU CAN EASILY AND PRECISELY SEAT BULLETS IN ANY CARTRIDGE BODY WHICH HAS THE SAME BODY TYPE YOU PURCHSE.
IMAGINE BEING ABLE TO EASILY AND PRECISELY BEING ABLE TO SEAT BULLETS FROM A 22 CREEDMOOR, 6 BR, 6.5 CREEDMOOR AND 308 WINCHESTER ALL WITH THE SAME DIE. OR A 6.5 SAUM, 28 NOSLER, AND A 300 RUM.  OUR “THE” SEATING DIE WILL BE YOUR ONE STOP SHOP FOR A FAMILY OF CARTRIDGES.
HERE IS A LIST OF CARTRIDGES CAMPATIBLE WITH EACH TYPE OF SEATING DIE
  • Type 1 (Any 223 Rem Based Cartridges)

223 Remington

223 Remington Ackley Improved

222 Remington

204 Ruger

6x45mm Remington

221 Fireball

22 Hornet

300 Blackout

  • Type 2 (Any Valkyrie Based Cartridges)

.224 Valkyrie

  • Type 3 (Any PPC Based Cartrdiges)

6 PPC

6 ARC

6.5 Grendel

6.8 SPC

7.62 x 39

  • Type 4 (Any 308 Based Cartridges)

22 / 6 / 25 / 30 BR

22 / 6 / 25  BRA

22 / 6 / 25 BRX

22 / 6 / 25 Dasher

22 / 6 / 25 / 6.5 / 30 x 47 Lapua

22 / 6 / 25 / 30 GT

22 / 6 / 25 / 6.5 / 7 / 30 Creedmoor

22-243 / 243 / 260 / 7mm-08 / 308 Winchester

Will not work for long action cartridges

  • Type 5 (Any .284 Winchester Based Cartridges)

6.5 – 284 Winchester

284 Winchester

  • Type 6 (Belted Magnums and PRC’s)

300 Winchester Magnum

7 Remington Magnum

6.5 PRC

7 PRC

300 PRC

7 LRM

264 Winchester Magnum

264 Weatherby Magnum

270 Weatherby Magnum

7 Weatherby Magnum

300 Weatherby Magnum

  • Type 7 (SAUM Based Cartridges)

6 / 6.5 / 7 / 300 SAUM (Short Action Ultra Magnum)

26 / 28 / 30 Nosler

7 / 300 / 338 RUM ( Remington Ultra Magnums)

  • Type 8 (WSM Based Cartrdiges)

7-300 / 300 WSM (Winchester Short Magnum)

7 WSM (Longer Body than 300 WSM)

  • Type 9 (Lapua Magnum Based Cartridges)

338 Lapua Magnum

338 Lapua Magnum Ackley Improved

300 / 338 Norma Magnum

33 / 37 XC

  • Type 10 (30-06 Springfield Based Cartridges)

25-06 / 6.5-06 / 30-06

270 Winchester









Screen Shot 2020-08-21 at 1.20.14 PM.png

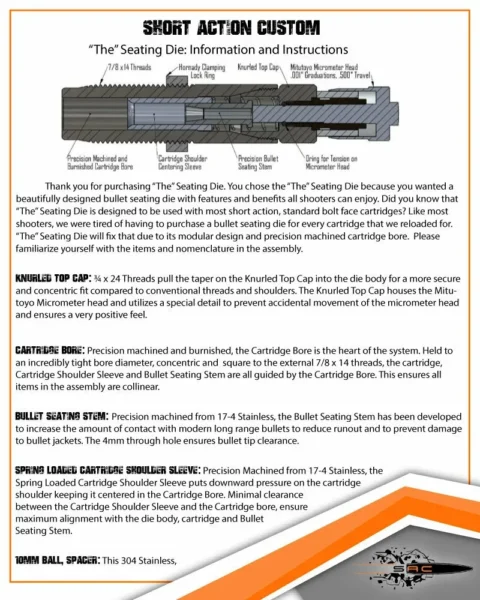

Here is how “The” Seating Die works. The center bore of the die body is drilled and bored to ensure concentricity and parallelism to the bottom of the die and 7/8 x 14 threads. Next we precision ream the center bore for a perfect finish, lastly the hole is internally burnished for a mirror like surface finish while controlling the inside diameter to a tolerance of +/-.0002″.  This precision guide channel only has .001″ to .002″ total clearance around the base of the cartridge, properly locating the cartridge in the die body.

Next the spring loaded Cartridge Shoulder Centering Sleeve and precision guided Bullet Seating Stem are held concentric and are guided by this precision cartridge bore in the die body. This ensures the absolute most concentric and true assembly.

Furthermore, we top off “The”Seating Die with a Mitutoyo Micrometer head which has .001″ graduations for a total travel of .500″ for the more precise bullet seating adjustments. Type 6 / 7 / 8 / and 9 will have a 1.000″ travel micrometer head to give “The” Seating Die the ability to seat short and long magnums.  Lastly, we incorporated a micrometer tension system to achieve a very positive feel when turning the micrometer head and prevent accidental movement.

“The” Seating Die can properly seat 22 cal, 6mm, 25 cal, 6.5mm, 7mm, 30 cal, 338 cal and 375 cal caliber bullets!

BULLET SEATING STEMS

Model 1: Works best with 22 cal to 6.5mm bullets

Model 2: Works best with 6.5mm to 30 cal bullets. We have seated 6mm bullets with the Model 2 with no issues

Model 3:  Works best with 30 Caliber to 338 Caliber Bullets

Model 4:  Works best with 338 Caliber to 375 Caliber Bullets

Depending on the Type of “The” Seating Die you ordered you will not receive all the stems.  Our Type 1 seating dies will come with a cartridge centering sleeve and seating stem all in one for 300 Blackout plus a model 1 and model 2 seating stem

TYPE 6 / 7 / 8 / 9 / 10 “THE” SEATING DIES WILL NOT WORK ON THE FORSTER CO-AX PRESS.

Weight 1 kg
Dimensions 30 × 9 × 6 cm
Seating Die Type

Type 1, Type 2, Type 3, Type 4, Type 4XL, Type 5, Type 6, Type 7, Type 8, Type 9

Brand

Short Action Customs

At SAC we are never satisfied with the industry standard. Our business has been founded with the principal that everything must be challenged and improved upon. Techniques, tooling, fixtures and execution can all be refined to the point of perfection. With every service and detail we perform, we apply this philosophy. It is our pleasure to deliver exceptionally designed products and services on time with performance and satisfaction at the heart of everything we do. Thank you for choosing Short Action Customs, LLC
